Other EMI/EMC products *** |
| |
|
|
| |
RF-clad
foam gaskets |
| |
| At high frequencies
the openings and
joints of a technically
usable metal shell
are particularly
important in terms
of theire shielding
qualities. It is
they, rather than
the thickness of
the walls for instance,
that determine the
attenuation characteristics.
which tend to be
well below that
of an ideal shell.
In order to ensure
good shielding in
the RF range as
well, it is necessary
to seal the area
where the D-sub
connector is at
short, pre-defined
intervals. The shorter
these intervals,
the greater the
shielded frequency
spectrum |
|
Features
of RF-clad foam
gaskets |
| |
▶ suitable for
use with normal
D-sub connectors
(standard, mixed
layout and high
density)
▶ facilitates EMI/EMC
design
▶ air and watertight,
preventing corrosion
at the contact points
▶ silver metallized
nylon fabric with
abrasion proof conductive
coating
▶ large number of
defined contact
support points per
surface for use
in the highest frequency
areas
▶ highly resistant
to ageing
▶ UL94 V-0 and UL94
HB listed
▶ rear mounting
inside the shell
|
|

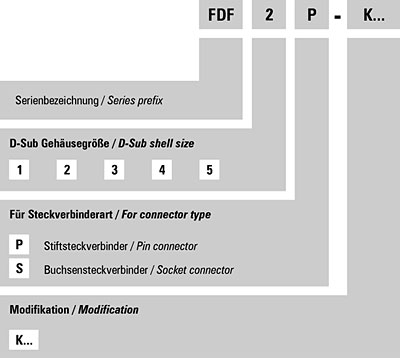

Ordering
code |
| |
|
|

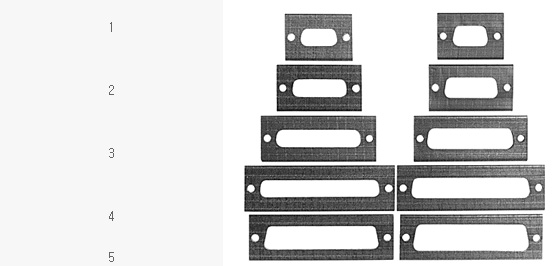

Shell
size For
socket connector For
pin connector
|
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
| |
|
|
|
|
| |
|
|
| |
***
D-Sub Filters Connectors Mixed
LayoutD-Sub Filters Connectors
Mixed Layout *** |
| |
|
|
| |
|
D-Sub
filter connector
FHC7W2P-1896,
straight high
power and signal
contacts, solder |
|
| In addition to
signal contacts
for standard D-Sub
connectors, special
contacts such as
high power contacts
for example can
also be filtered
with difficult layouts.
We are happy to
answer any queries
you may have regarding
possible contact
combinations and
delivery lead times. |
| |

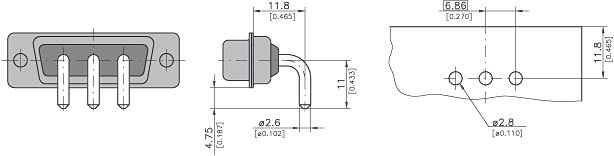

Dimensions
for Connector
with High Power
Contacts,
Right Angled PCB
Termination, 20
A |
| |
|
| |
Dimensions
for Connector
with High Power
Contacts, Straight
Cable Termination,
Solder, 20A, AWG
12-16 |
| |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
| |
|
|
|
|
>
