Merkmale

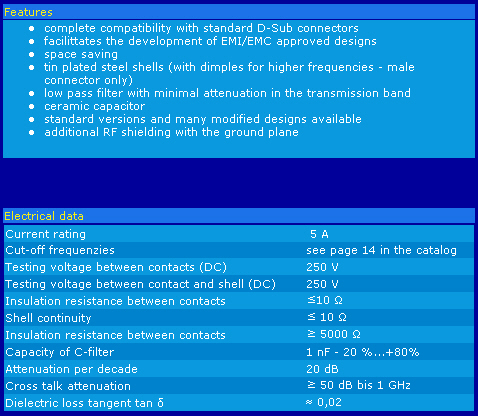

Features
* erleichtert EMV-gerechtes Design
* platzsparend
* verzinntes Stahlgehause (bei Stiftsteckverbindern mit Kontaktnoppen fur hohe Frequenzen)
* Tiefpassfilter mit geringster Dampfung im DurchlaBbereich
* Keramikkondensator
* Standardausfuhrungen und Sonderanfertigungen verfugbar
* zusatzliche HF-Dichtheit durch "ground plane"

* Facilitates the development of EMI/EMC approved designs
* space saving
* Tin plated steel shells (with dimples for higher frequencies - male
connectors only)
* Low pass filter with minimal attenuation in the transmission band
* Ceramic capacitor
* Standard versions and many modified designs available
* The ground plane enables additional Rf shielding

















*** MOUNTING OPTION ***

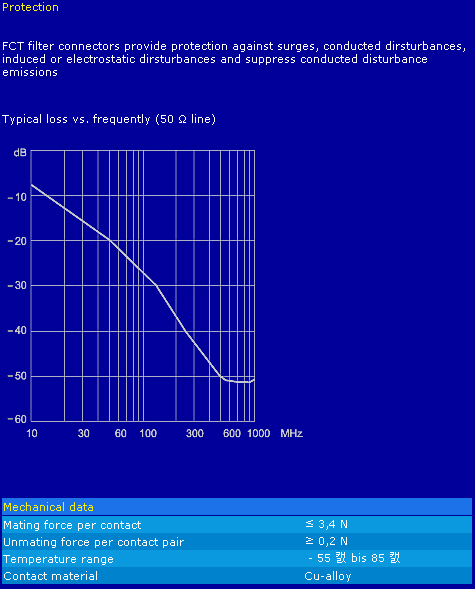

*** Technical Data ***
